Rexing OBD2 Scanner - Enhanced Universal Car Code Reader & Diagnostic Tool for All OBDII Cars Since 1996, Read/Clear Engine Fault Codes, Check Smog Readiness, Live Data & Freeze Frame (Black)
Rexing OBD2 Scanner - Enhanced Universal Car Code Reader & Diagnostic Tool for All OBDII Cars Since 1996, Read/Clear Engine Fault Codes, Check Smog Readiness, Live Data & Freeze Frame (Black)
Rexing OBD2 Scanner - Enhanced Universal Car Code Reader & Diagnostic Tool for All OBDII Cars Since 1996, Read/Clear Engine Fault Codes, Check Smog Readiness, Live Data & Freeze Frame (Black)
Rexing OBD2 Scanner - Enhanced Universal Car Code Reader & Diagnostic Tool for All OBDII Cars Since 1996, Read/Clear Engine Fault Codes, Check Smog Readiness, Live Data & Freeze Frame (Black)
Rexing OBD2 Scanner - Enhanced Universal Car Code Reader & Diagnostic Tool for All OBDII Cars Since 1996, Read/Clear Engine Fault Codes, Check Smog Readiness, Live Data & Freeze Frame (Black)
Rexing OBD2 Scanner - Enhanced Universal Car Code Reader & Diagnostic Tool for All OBDII Cars Since 1996, Read/Clear Engine Fault Codes, Check Smog Readiness, Live Data & Freeze Frame (Black)
Rexing OBD2 Scanner - Enhanced Universal Car Code Reader & Diagnostic Tool for All OBDII Cars Since 1996, Read/Clear Engine Fault Codes, Check Smog Readiness, Live Data & Freeze Frame (Black)
Rexing OBD2 Scanner - Enhanced Universal Car Code Reader & Diagnostic Tool for All OBDII Cars Since 1996, Read/Clear Engine Fault Codes, Check Smog Readiness, Live Data & Freeze Frame (Black)

Rexing USA

Rexing OBD2 Scanner - Enhanced Universal Car Code Reader & Diagnostic Tool for All OBDII Cars Since 1996, Read/Clear Engine Fault Codes, Check Smog Readiness, Live Data & Freeze Frame (Black)

Precio de venta$49.99

Instant Diagnosis – Quickly and accurately determine why your Check Engine Light (CEL) is on. This plug-and-play scanner reads and clears emission-related diagnostic trouble codes (DTCs) in seconds, saving you time and expensive trips to the mechanic.

Universal Compatibility – Works on most 1996 US-based, 2000 EU-based, and Asian vehicles. Supports all OBDII protocols including CAN, KWP2000, ISO9141, J1850 VPW, and J1850 PWM. (Note: Not compatible with OBDI or non-emission systems like ABS/Airbag).

Smog Check Ready – Features I/M Readiness monitoring to help you pass annual smog inspections. View critical engine data, including Live Data streams and Freeze Frame information, to see exactly what happened when a fault was triggered.

Rugged & User-Friendly – Built for the garage with a classic, sturdy design and a 2.5ft heavy-duty flexible cable. The large backlit LCD screen and intuitive interface make it easy to operate even for beginners—no batteries or apps required.

Essential Home Tool – Compact, lightweight (12 oz), and portable. Whether you're a DIY enthusiast or a car owner who wants peace of mind on road trips, this tool provides professional-grade insights at an entry-level price.

Key Features:

  • Quick Scan: Reads and clears generic (P0, P2, P3, and U0) and manufacturer-specific (P1, P3, and U1) codes.

  • Live Data Stream: Monitor your engine's health in real-time.

  • Vehicle Info: Retrieve VIN, CIN, and CVN information to learn more about your vehicle’s history.

  • No Charging Needed: Powers up automatically when plugged into your vehicle's 16-pin OBDII port.

Please Note: This device is specifically designed for Emission-Related Engine Systems. It does not diagnose ABS, Airbags, or Oil Life resets. It is strictly for OBDII compliant vehicles (not for older OBDI models).

Cantidad:

Rexing OBDII Scanner

A warning light.
A clearer next step.

Understand your check engine light with a scanner that puts fault codes, live engine data and emissions readiness in your hands. Plug in. Read the results. Make your next move with more information.

Vehicle-powered · No app or batteries required

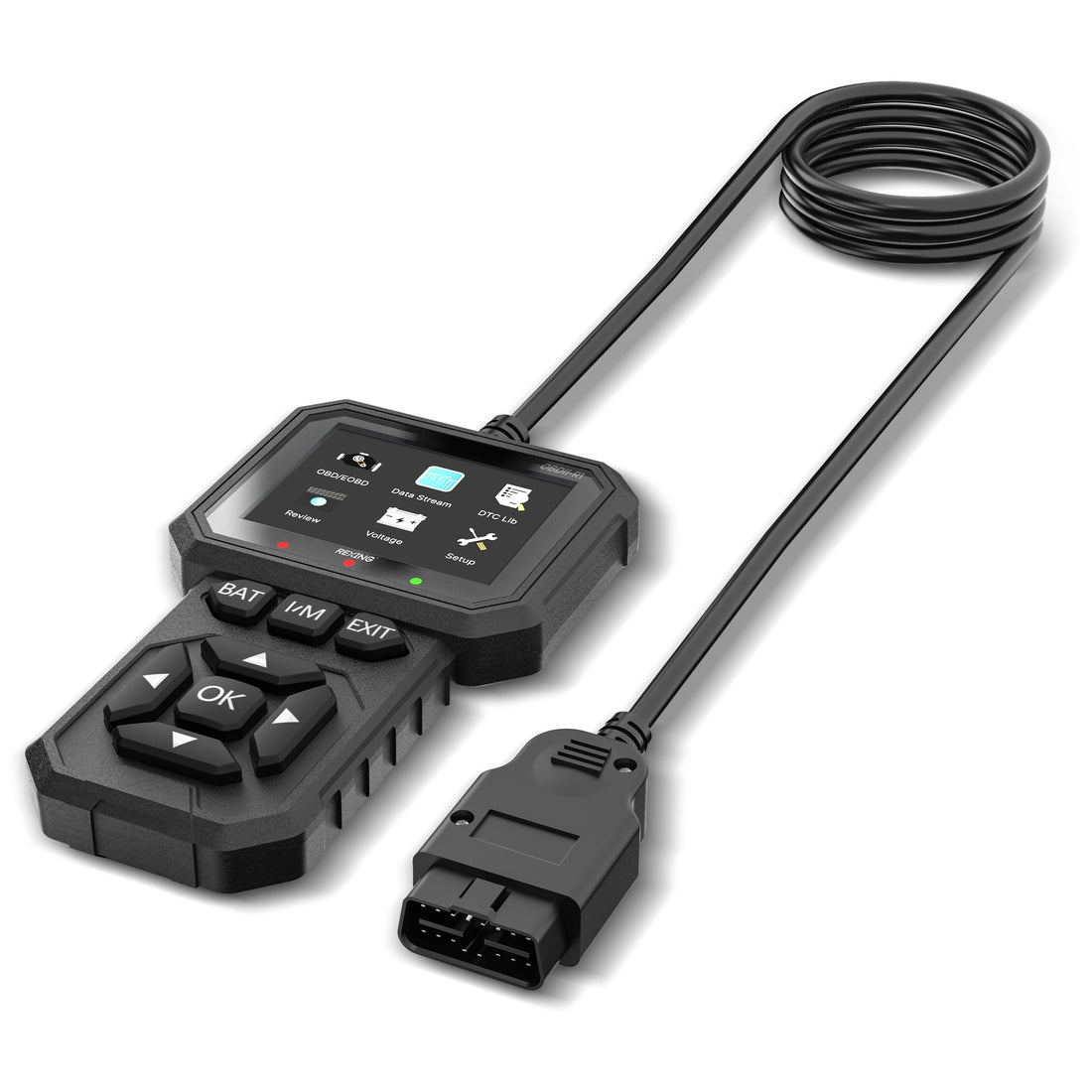

Rexing OBDII scanner with attached cable and 16-pin vehicle connector
Read + clearEngine fault codes
Live dataPlus freeze frame
I/M readyEmissions status check
2.8-inchBacklit LCD screen

From warning to understanding

Find the code.
Understand the clue.

Read emission-related engine trouble codes before deciding what to check next. The built-in DTC lookup library helps you interpret the code on screen.

  1. 01

    Read engine codes

    Access supported generic and manufacturer-specific diagnostic trouble codes (DTCs).

  2. 02

    Review the information

    Check freeze-frame data and supported vehicle information, including VIN and calibration details.

  3. 03

    Clear codes after repairs

    Erase supported engine codes once the underlying issue has been addressed. Clearing a code does not repair the fault.

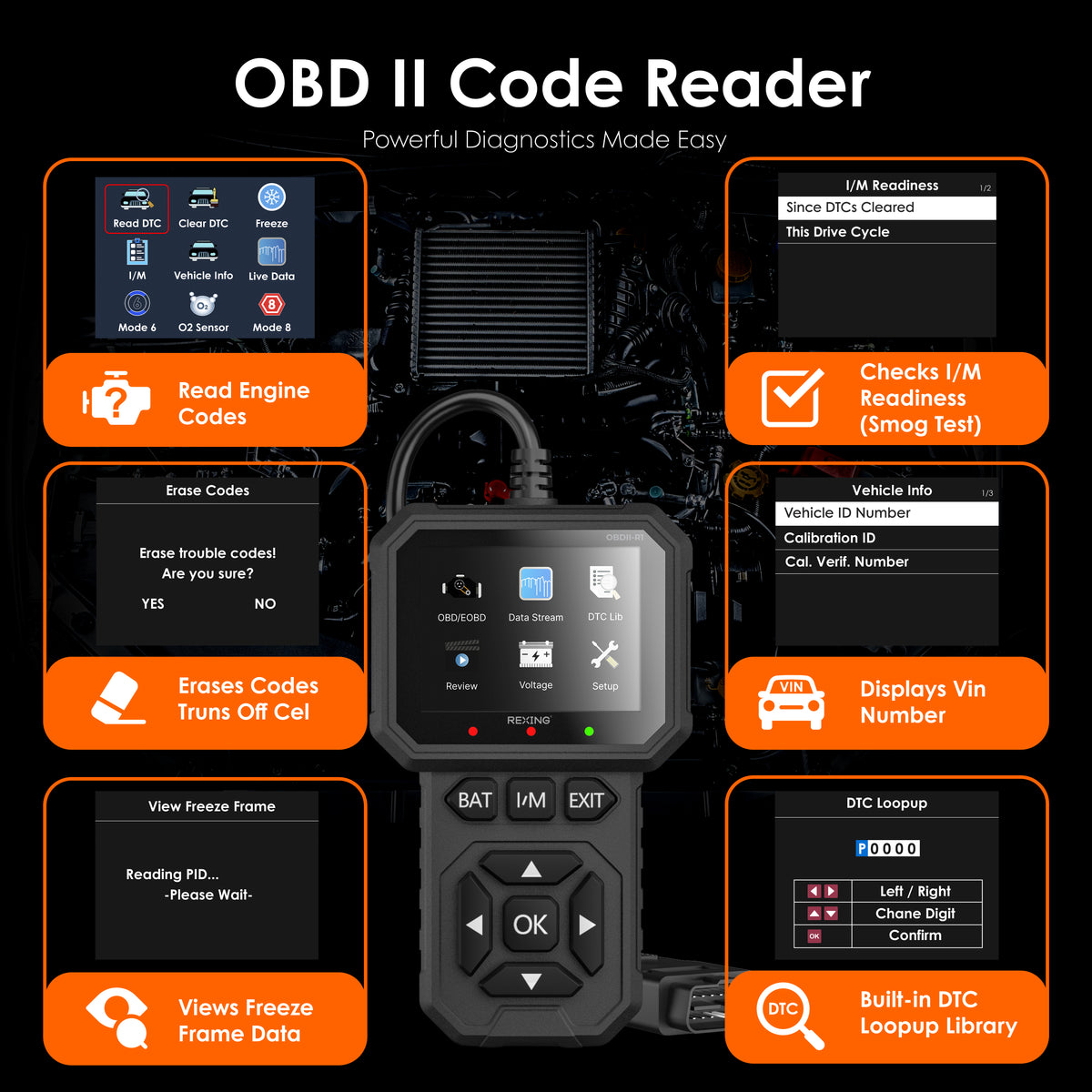

Rexing scanner functions: engine codes, clear codes, freeze frame, I/M readiness, vehicle information and DTC lookup

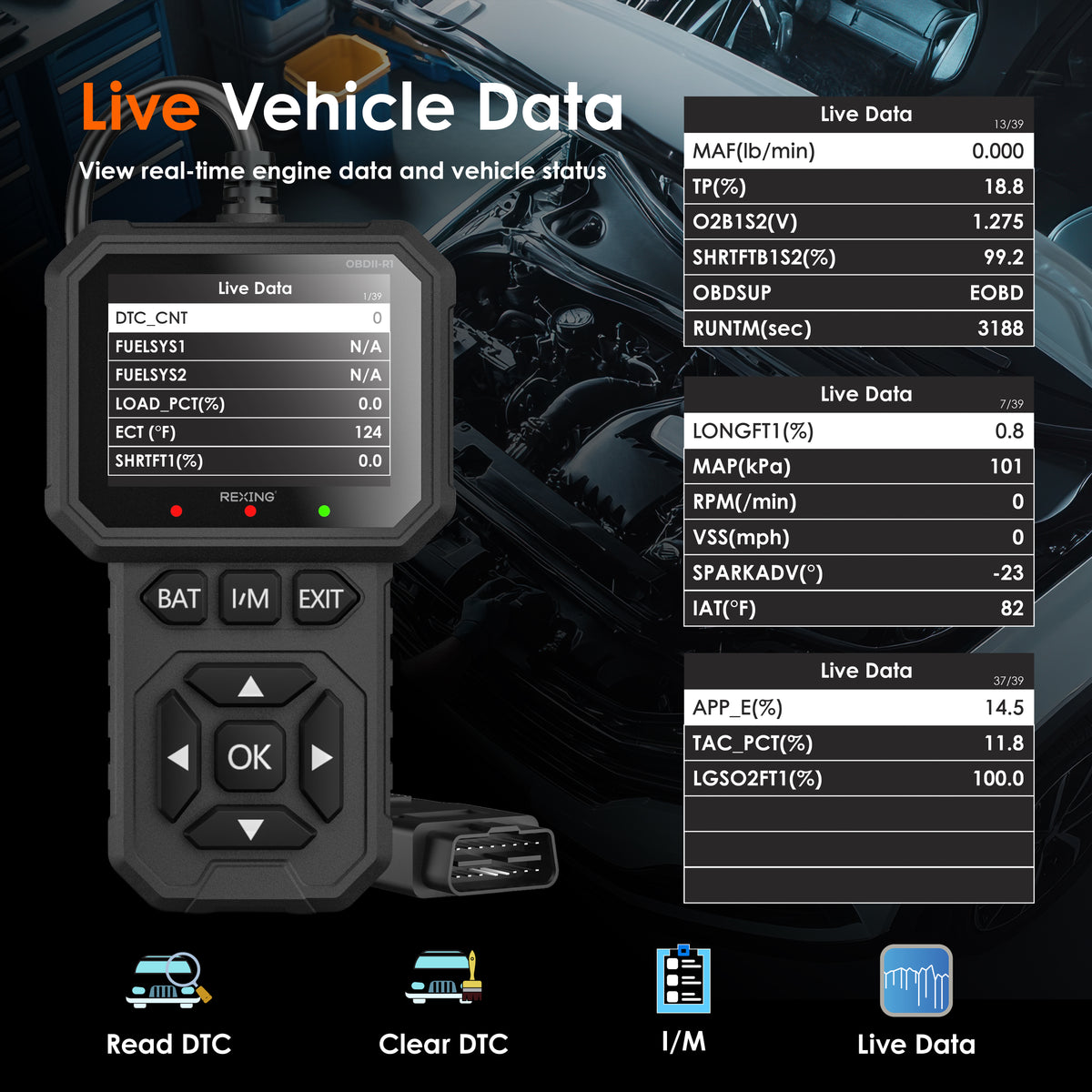

Rexing OBDII live data display showing engine sensor readings and vehicle status

See more of the story

What is happening.
What happened then.

See current engine readings, then review a snapshot of operating conditions recorded when a fault was detected.

Live data

View supported readings such as engine RPM, coolant temperature and fuel-trim data as they update.

Freeze frame

Review the conditions associated with a stored fault to add context to the trouble code.

Available readings and diagnostic information depend on the vehicle and the data its control system supports.

Before an emissions inspection

Check readiness.
Plan with confidence.

Use I/M Readiness to check the status of supported emissions monitors before heading to an inspection. The dedicated I/M button keeps this everyday check easy to reach.

Easy to read

A 2.8-inch backlit LCD presents diagnostic menus and results directly on the device.

Easy to navigate

Physical buttons, a 30-inch cable and six interface languages make everyday checks straightforward.

A readiness check helps you understand monitor status; it does not guarantee an inspection pass.

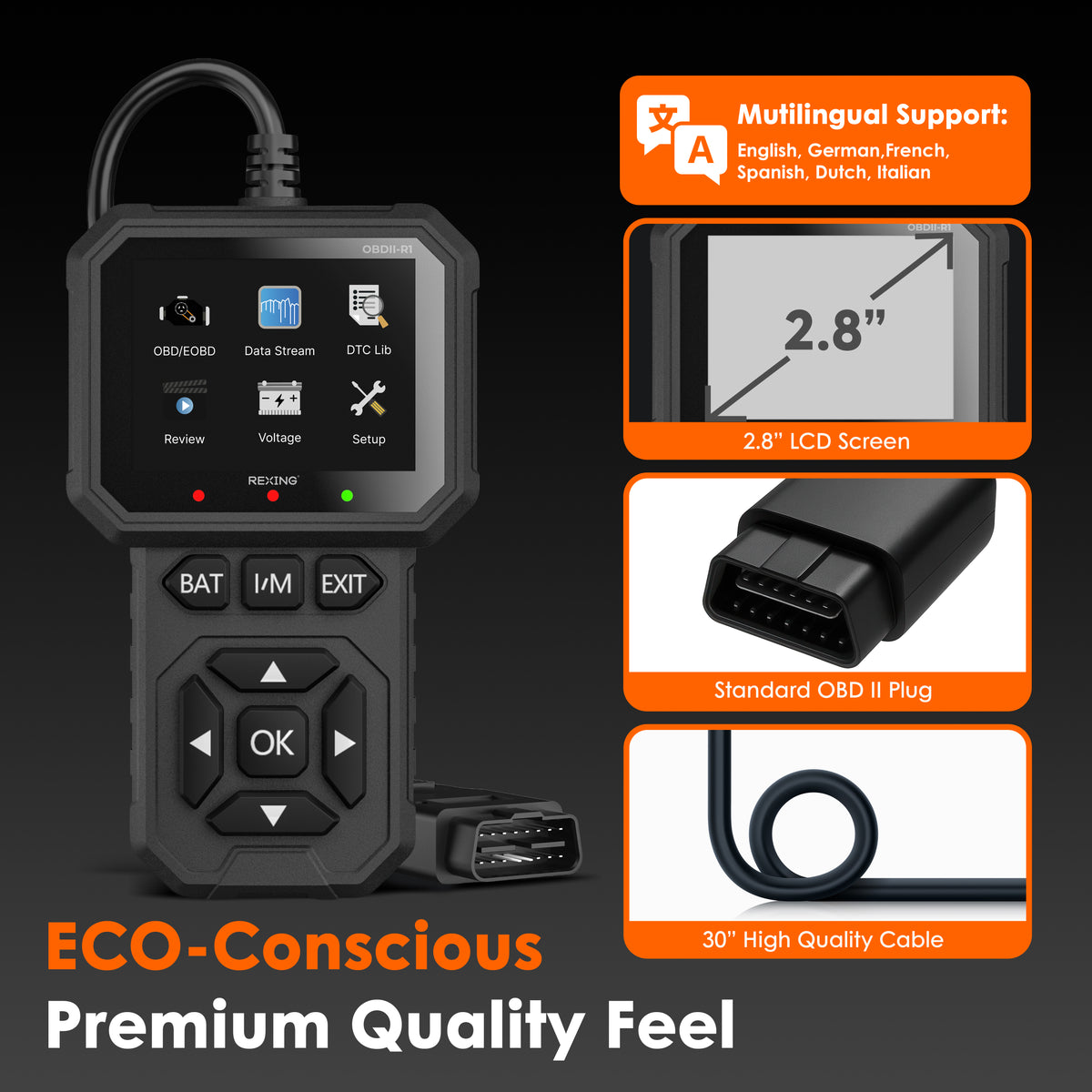

Rexing OBDII scanner with 2.8-inch LCD, six interface languages, standard OBDII plug and 30-inch cable

Choose the right tool

Made for OBDII.
Focused on engine emissions.

✓

Compatible applications

  • Most OBDII-compliant US vehicles from 1996 onward.
  • Most OBDII-compliant European vehicles from 2000 onward, plus supported Asian vehicles.
  • Emission-related engine codes and supported diagnostic data through a standard 16-pin OBDII port.
  • CAN, KWP2000, ISO9141, J1850 VPW and J1850 PWM protocols.
−

Outside its scope

  • Older OBDI vehicles.
  • ABS and airbag system diagnosis.
  • Oil-life resets.
  • Functions or data that a vehicle does not expose through supported OBDII diagnostics.

Confirm OBDII compliance for your vehicle. Model year alone does not confirm every supported function. Ask Rexing Support about compatibility →

Simple from the first connection

Plug in.
Get a better picture.

  1. Connect the scanner

    Locate the vehicle's 16-pin OBDII port, typically beneath the dashboard, and connect the plug.

  2. Switch the ignition on

    The scanner draws power from the vehicle. Follow the vehicle and scanner instructions for the selected diagnostic function.

  3. Read and review

    Choose Read Codes, Live Data, Freeze Frame or I/M Readiness to view the available results.

  4. Address the issue

    Use the findings to guide further checks or a conversation with your mechanic. Clear supported codes after repairs.

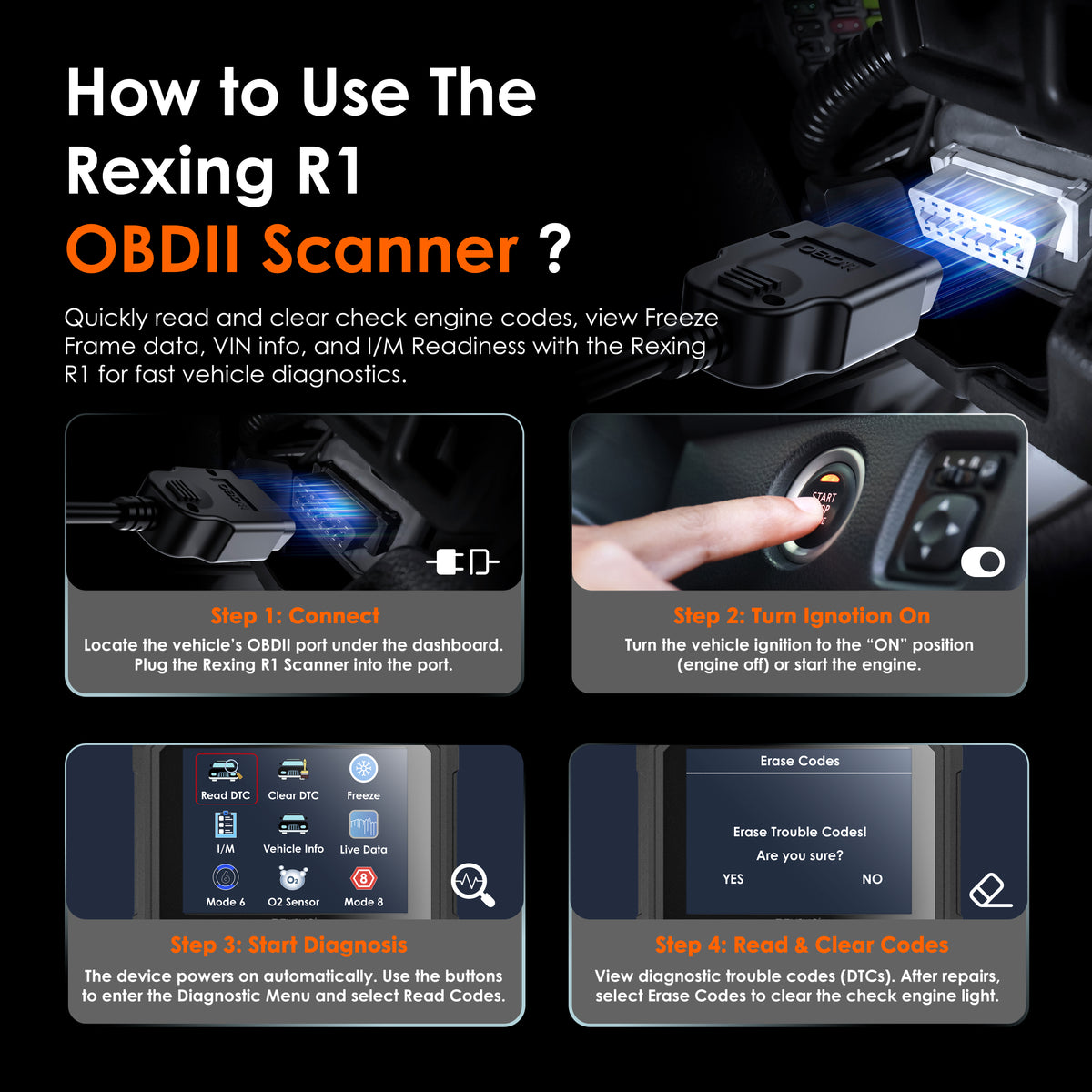

Four illustrated steps for connecting and using the Rexing OBDII scanner

The essential details

Everything at a glance.

Diagnostic focus
Emission-related engine systems
Code functions
Read and clear supported DTCs; built-in lookup library
Data views
Live data and freeze frame
Emissions check
I/M Readiness monitor status
Vehicle information
VIN and supported calibration information
Display
2.8-inch backlit LCD
Connection
Standard 16-pin OBDII plug
Power source
Vehicle OBDII port; no batteries required
Cable length
30 inches / 2.5 feet
Interface languages
English, German, French, Spanish, Dutch and Italian
Protocols
CAN, KWP2000, ISO9141, J1850 VPW and J1850 PWM
Not supported
OBDI, ABS, airbags and oil-life resets

Before you plug in

A few useful answers.

Will this scanner work with my car?

It works with most OBDII-compliant US vehicles from 1996 onward, European vehicles from 2000 onward and supported Asian vehicles. Check your vehicle's OBDII compliance; available functions vary by vehicle. Contact Rexing Support if you are unsure.

Does it require an app or batteries?

No. It connects directly to the vehicle's 16-pin OBDII port for power and shows results on its own screen.

Will clearing a code fix my check engine light?

Clearing a supported code can turn off the check engine light after repairs, but it does not fix the underlying problem. If the fault remains, the light may return.

Can it diagnose ABS or airbag warnings?

No. This scanner is designed for emission-related engine diagnostics. ABS, airbags and oil-life resets are outside its scope.

What is the difference between live data and freeze frame?

Live data shows supported current engine readings. Freeze frame shows a stored snapshot of operating conditions associated with a detected fault.

Does I/M Readiness guarantee a smog-test pass?

No. It shows the status of supported emissions monitors so you can better prepare for an inspection. It is not a guarantee that the vehicle will pass.
