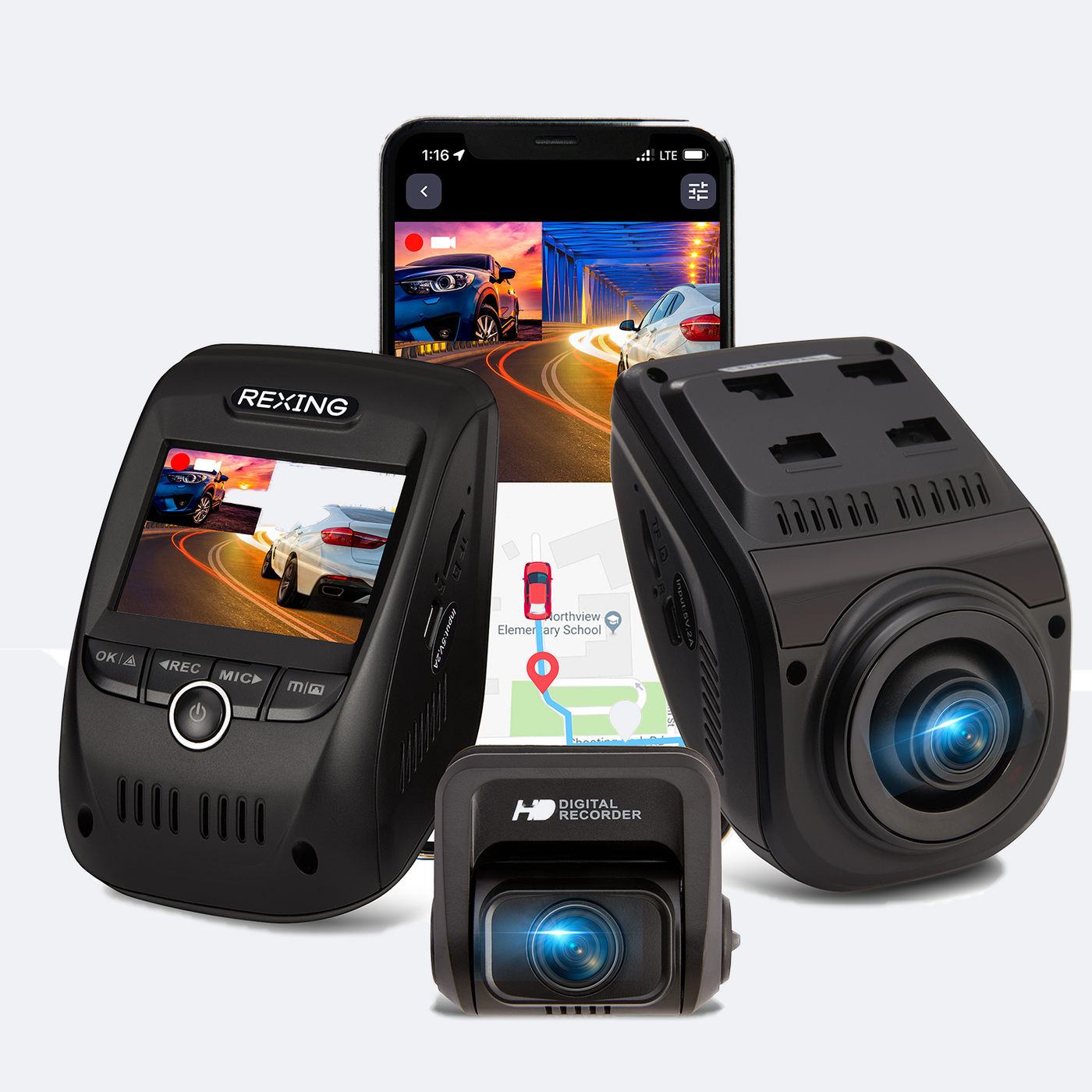

V1P Max.
Ready for
the road.
Set up your front and rear cameras, connect Rexing Connect and match the parking kit to your recording mode.
Download V1P Max manual âStop. Set. Confirm.
Use these camera buttons while parked.
REC
Stop recording before changing settings.
MENU Ă 2
Open System Settings.
OK
Confirm a selection or play a video.
Prepare for the first drive.
Mount behind the mirror
Clean and dry the windshield. Attach the adhesive mount in the guideâs orientation and wait at least 20 minutes before mounting the camera. Keep the driverâs view clear.
Insert the memory card
The April 2023 V1P Max guide supports Class 10 / UHS-I or faster microSD up to 256GB. Power off before inserting or removing the card.
Format in the camera
Connect the supplied power cable, press REC to stop recording, then MENU twice for System Settings. Use REC/MIC to select Format and OK to confirm. Formatting erases files; back up first.
Connect nearby. Save a copy.
Enable camera Wi-Fi
Stop recording with REC, press MENU once and select Wi-Fi with REC/MIC. Join T5_XXXX on your phone using the default password 12345678. Hold REC for the Wi-Fi shortcut.
Open Rexing Connect
Stay connected to the camera network, open Rexing Connect and tap Connect. The camera Wi-Fi is a local connection and may show no internet.
Review and disconnect
Use the app to view or download recordings. Hold REC to access or turn off Wi-Fi.
Playback on the camera
Stop recording, hold MENU/MODE to enter Playback, browse with REC/MIC and press OK to play or pause. MIC fast-forwards and REC rewinds during playback.
Computer transfer
Power off, remove the card and use a card reader to copy recordings. Preserve important footage in separate storage.
Rexing Connect
Find official app resources â
Match the power kit to the mode.
Vibration detection
Use the compatible Smart Hardwire Kit, sold separately. The guide identifies ASIN B07RN24B7V. The camera remains off until movement triggers an event; High Gravity Sensing is recommended for parking events.
Motion detection
Use the compatible Rexing Intelligent Hardwire Kit, sold separately; the guide identifies ASIN B0973MBCT8. It powers the camera when motion is detected. Keep the cameraâs Parking Mode off for this setup.
Low-voltage protection
When the exact kitâs battery protection cuts power, the camera cannot record parking events. Check its documented settings and restore adequate power according to the kit instructions.
A clearer next step.
Settings will not open
Press REC to stop recording first. MENU once opens the current modeâs settings; MENU twice opens System Settings.
The card fills with locked files
Back up needed clips, review Gravity Sensing sensitivity and format the card in the camera when appropriate. Locked clips are not overwritten by normal loop recording.
The phone joins Wi-Fi but the app fails
Stay on the network displayed by the V1P Max, open Rexing Connect and tap Connect. Do not switch to your home Wi-Fi during the connection.
How do I connect the rear camera?
With power off, connect the supplied rear camera to the front unit with the rear cable. Mount it as shown in the guide and check the rear picture and saved footage before driving.
Identify your V1P Max revision
Send the complete model, a photo of the label, firmware version and power-kit details. This helps distinguish the V1P Max from other V1P models.
The right guide for your V1P Max.
V1P Max manual
Setup, app & parking
April 2023 · PDF â
Warranty information
Review warranty and return information â
Find another model
Search all product support â
Still need a hand?
Contact Rexing with your V1P Max model and a photo of the issue.
